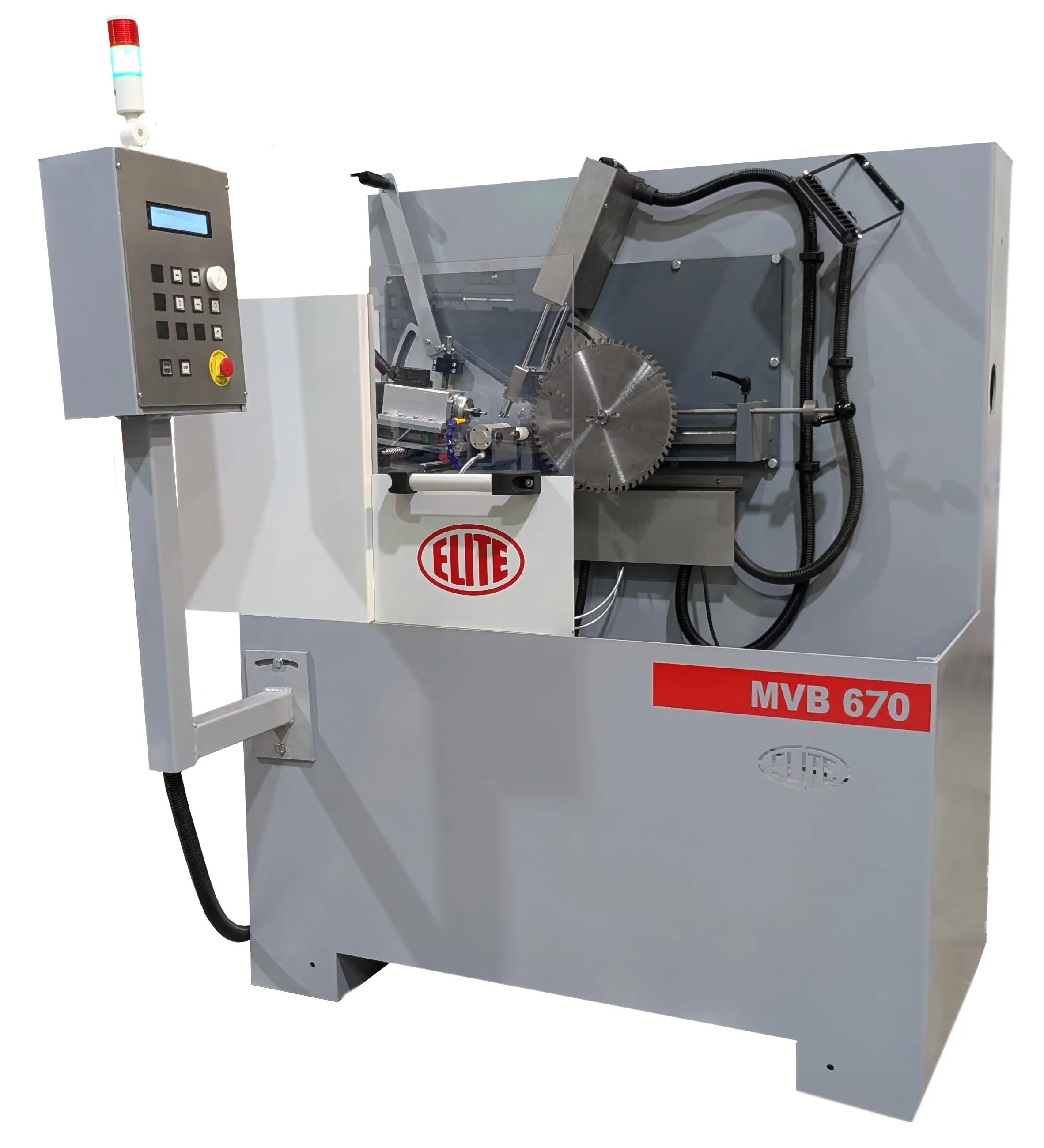

AUTOMATIC CHIP BREAKER SLOT GRINDING MACHINE FOR HSS OR TUNGSTEN CARBIDE CIRCULAR SAWS
FEATURED
- 2 CNC axis for automatic work programmable from the control panel
- 1 pneumatic axis to move the chip breaker grinding motor right and left
- Programmable tooth pitch
ELITE MVB 670. THE CONCEPT.
For saws from ø210 to 650 mm.
Automatic operation using 2 CNC axis and one pneumatic axis:
- A: Tooth indexing
- X: Sharpening path
- Y: Chipbreaker grinding left or right
Manual axis:
- Z: manual movement to center the height of the grinding wheel
The design of the enclosure ensures particularly easy access for quick adjustment of the machine's preparation for sharpening.
ELITE MVB 670. HOW IT WORKS

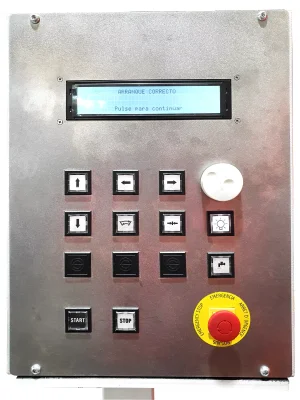

Easy to use control panel
All the functions of the buttons are explained in the buttons with illustrations. And every button is intended to do a single task. So you know what to expect from a button press.
The control panel with LCD screen allows the programming of the machine. Among the programmable values we highlight:
- Sharpening path
- Sharpening speed
- Tooth pitch
- Indexing speed of the tooth indexing finger
- Number of teeth
- Broken teeth

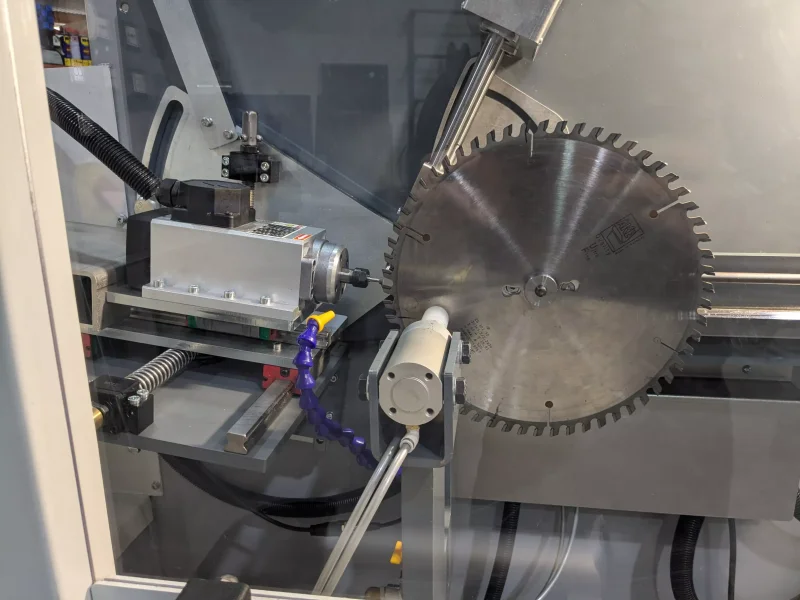

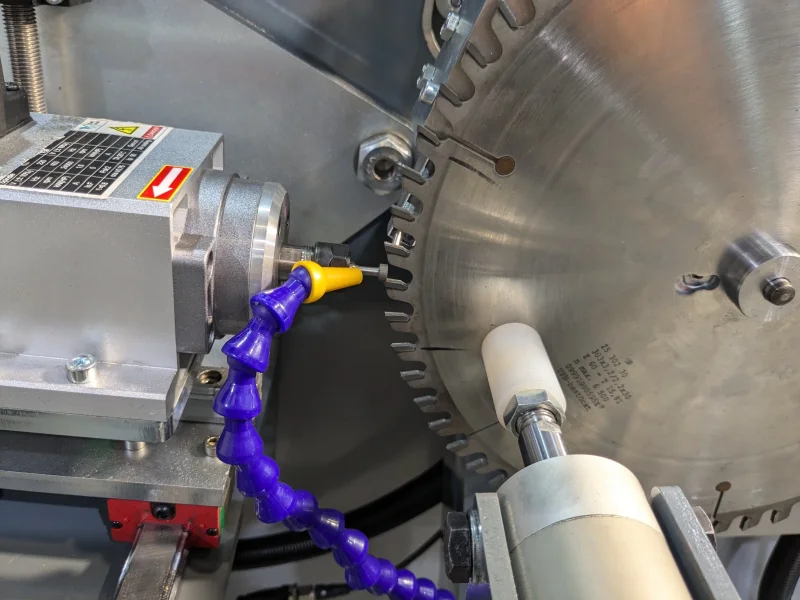

Sharpening group

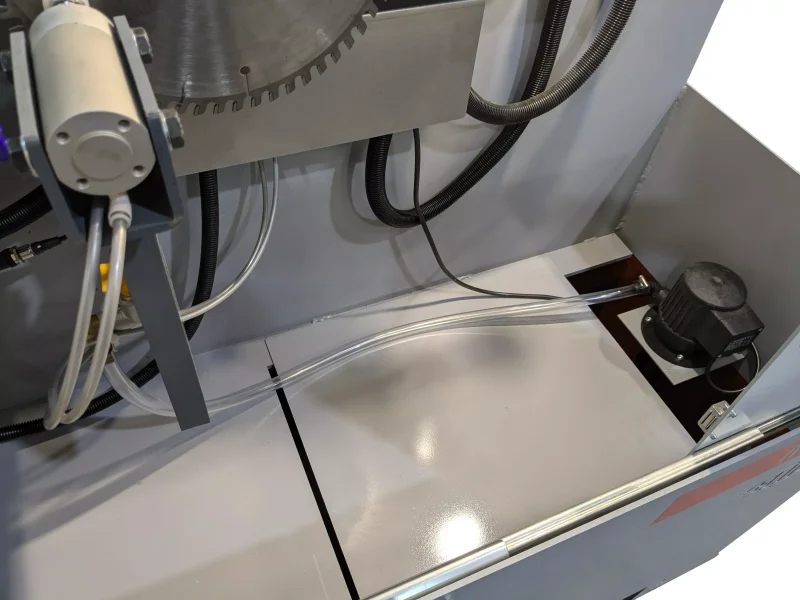

Integrated refrigeration equipment
It allows wet sharpening with water-soluble coolant or grinding oil for better sharpening quality and longer grinding wheel life. for better surface quality and longer grinding wheel life.
Integrated coolant system with 220-liter tank and removable grates for easy cleaning.

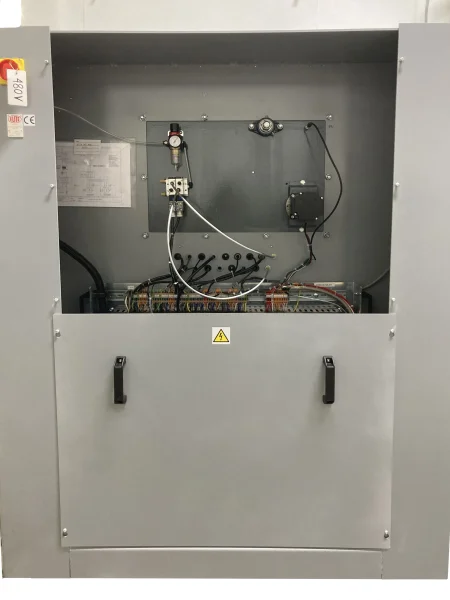

Easy access

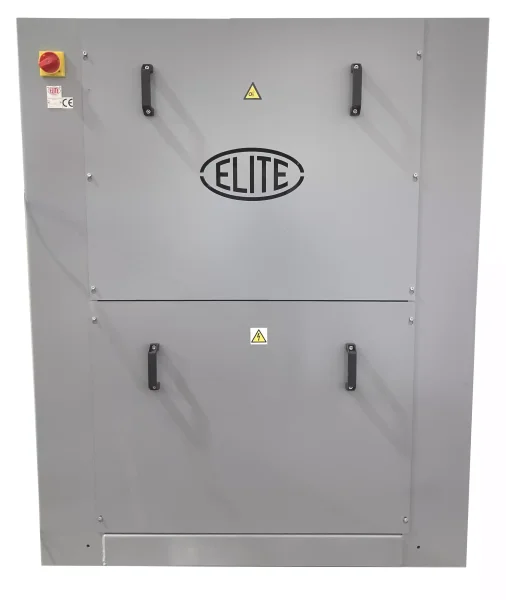

Clean design and easy access for servicing or repairing the machine.
Easy maintenance
The electrical panel is located at the bottom and the mechanics at the top of the machine, protected by an easy-to-open cover.

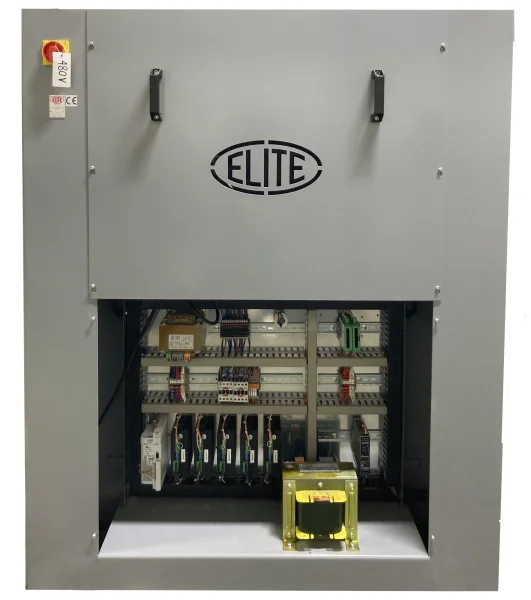

The electrical panel is organized in a clean way, so maintenance is simple when necessary.
ELITE MVB 670. EQUIPMENT INCLUDED
- Grinding wheel holder for ø32 mm.
- Feeding pawl indexing pin ø3 mm.
- Device for serial sharpening of equal diameters.
- Half enclosure.
ELITE MVB 670. SPECIFICATIONS
| TECHNICAL DATA | MVB 670 |
|---|---|
| Saw blade outside diameter | From ø210 to ø650 mm. (6" to 25,5") |
| Saw blade bore diameter | From ø10 mm. (0,39") |
| Blade thickness | Up to 8 mm. (0,31") |
| Tooth pitch | Up to 125 mm. (4,9") |
| CHIP BREAKER SLOT GRINDING | |
| Side distance between teeth | Up to 5mm. (0,19") |
| OTHER DATA | |
| Grinding wheel motor | 0,75 kW |
| Grinding wheel speed | up to 24000 RPM |
| Grinding wheel diameter for tooth sharpening | from ø50 to ø125 mm (ø1.9" - ø4.9") |
| 2 CNC axis | A: feeding pawl - X: sharpening path |
| 1 pneumatic axis | Y: Tooth centering |
| 1 manual axis | Z: Sharpening angle |
| Machine dimensions | 1440 x 1285 x 1600 mm. |
| Machine weight | 520 kg. |
TECHNICAL REQUIREMENTS
6 bar pneumatic air connection required.
Connection voltage: 220V 2Ph 50/60Hz
Required connection power: 1.1 kW
RECOMMENDED OPTIONAL ACCESSORIES
- Saw holder for circular saw blades with external ø200-450, ø400-650, and ø600-850 mm.
- Centering rings for circular saw blade with bore of various sizes.
- Reinforced saw holder device

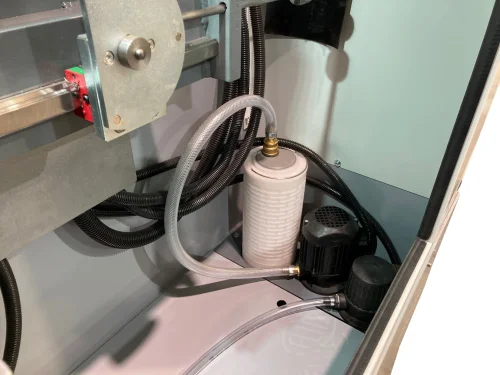

- Filtration system: ELITE FILTRAmaq UNO, SOLO, or PRO models. Filtration down to 2 µm. Recommended for improved sharpening quality.
