AUTOMATIC MACHINE WITH DOUBLE GRINDING WHEEL FOR SIDES GRINDING OF CARBIDE-TIPPED CIRCULAR SAW BLADES UP TO ø850MM.
HIGHLIGHTS
- Programable tooth pitch is possible
- Integrated refrigeration equipment
- Robust and very simple design that allows continuous use of the machine without breakdowns
- 4 CNC axis
- Very compact machine with a wide range of disc diameters: from ø100 to 850 mm.
ELITE GBT 850. THE CONCEPT.

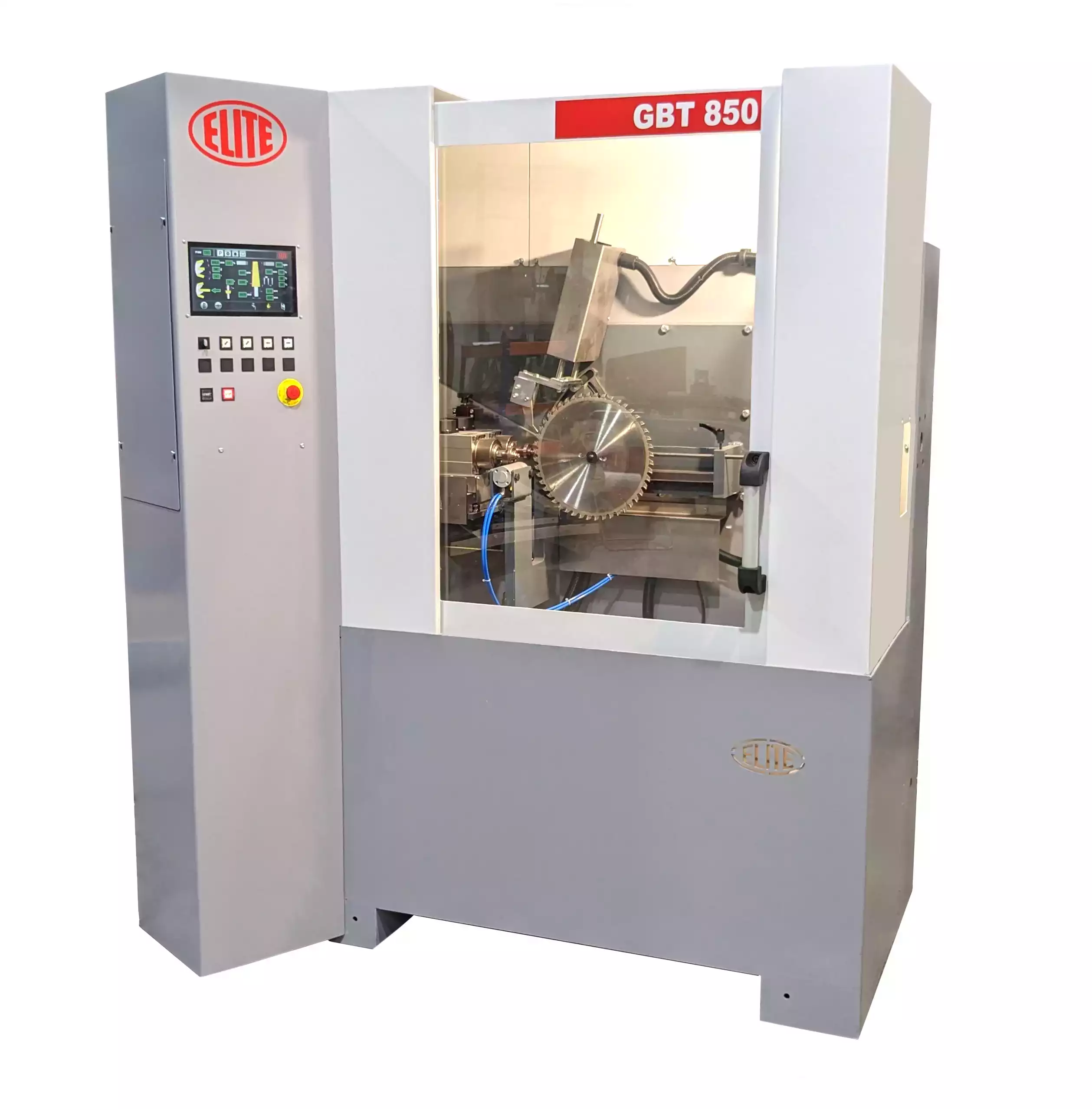

The ELITE model GBT 850 is our automatic dual-side grinding machine for circular saw blades from ø100 to 850 mm.
It allow for precise and rapid grinding of tooth sides to manufacture or repair carbide-tipped circular saw blades.
It is designed to be automatic without unnecessary additional costs. No complicated extra that can easily break or are expensive to repair.
ELITE GBT 850. HOW IT WORKS
Very simple programming through a guided menu or entering grinding data.

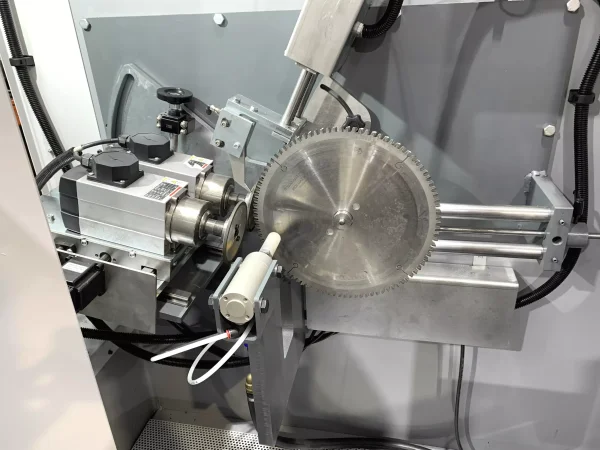

Automatic work by means of 4 CNC axis:
- X: Sharpening path
- Y1: Tangential angle of wheel No. 1
- Y2: Tangential angle of wheel No. 2
- A: Tooth pitch
Fully enclosed cabin for silent operation with a very fast door opening system that guarantees quick mounting of the saw blade and access door for maintenance.
Easy to use control panel
The control panel incorporates a color touch screen. This screen has been designed with a fast and easy-to-use interface that makes it very user-friendly. It is also possible to create or edit a program while the machines is running.
The machine includes a LED cabin light as standard.
Tooth pitch programmable through the software on the control panel.

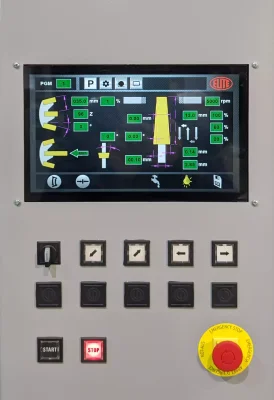

Control Panel
Grinding wheel rotation speed variable from 5.000 to 9.000 RPM
The direct grinding wheel spindles are adjustable between 5,000 to 9,000 RPM for optimal sharpening quality with minimal grinding wheel wear.
The spindles are driven by a frequency inverter, so you can adjust the grinding wheel speed to the optimal value as well as reduce energy consumption.
Saw diameter
Saw diameter from ø100 mm. up to ø850mm. diameter to grind the flanks of scoring discs or portable machines as well as sawmill saws.
Allows indexing of any type of tooth pitch.

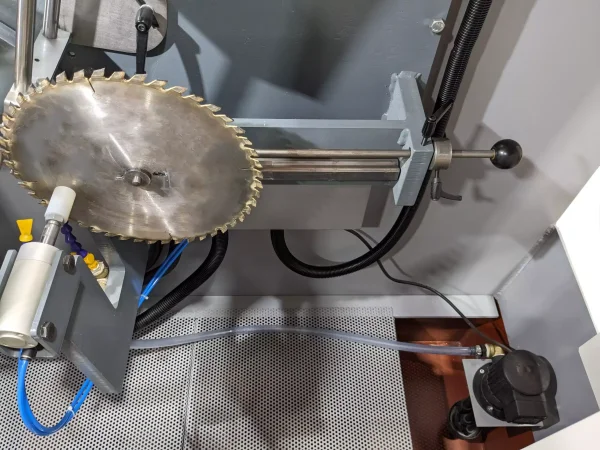

Integrated refrigeration equipment
Machine operates with water-soluble coolant or grinding oil for better sharpening quality and longer grinding wheel life.
Integrated coolant system with 220-liter tank and removable grates for easy cleaning.
Easy access and maintenance

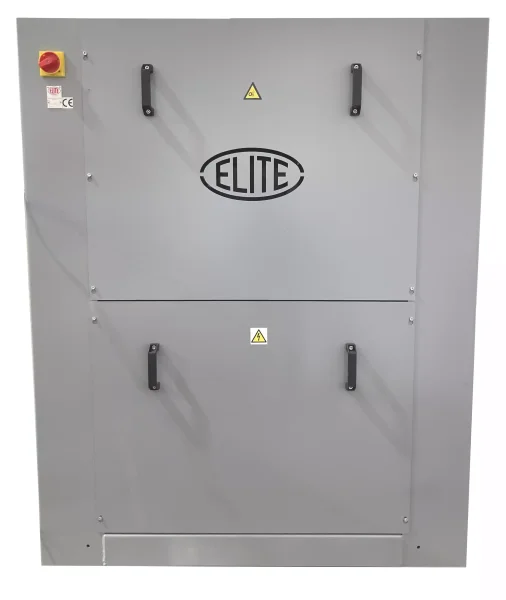

At the back of the machine we find the electrical panel at the bottom and the mechanical system at the top, both protected by their corresponding easy-access panel, which also reduces the total space needed for the machine.
ELITE GBT 850. EQUIPMENT INCLUDED
- Grinding wheel holder for sharpening wheels (two units).
- Lighting of the work area using LED lamp
- Device for sharpening saws of equal diameters
- Machine enclosure completely closed.
- Prepared for connection to a machine filtration system or a centralized filtration system.
ELITE GBT 850. SPECIFICATIONS
| TECHNICAL DATA | GBT 850 |
|---|---|
| Saw blade diameter | From ø100 to ø850 mm. (4" to 33.5") |
| Saw blade hole diameter | From ø10 mm. |
| Saw tooth thickness | Up to 14mm. |
| Saw body thickness | Up to 8mm. |
| Tooth pitch | From 1 to 125 mm. |
| Grinding wheel diameter | ø100 mm. (2 units) |
| Grinding wheel hole diameter | ø20 mm. |
| Automation | Using 4 CNC axes (X, Y1, Y2, A) |
| Manual axles | B, Z |
| Saw holding | By pneumatic clamping |
| Motor wheel | 0.75 kW x 2 units |
| Grinding wheel speed | Adjustable from 5000 to 9000 RPM |
| Machine dimensions | 1650 x 1200 x 1900mm. |
| Machine weight | 740 Kg. |
| SIDES GRINDING | |
| Grinding path | Up to 40 mm. (1,57") |
| Rake angle | From -15º to +30º |
| Radial cutting angle | From +5º to +6º |
| Tangential cutting angle | From 0º to 8º |
| REFRIGERATION EQUIPMENT | |
| Tank capacity | 220 liters |
| Coolant flow rate | Up to 40 liters/minute |
TECHNICAL REQUIREMENTS
A 6 bar pneumatic air connection is required.
Connection voltage: 220/400V 2Ph 50/60Hz
Required connection power: 2.5 kW
RECOMMENDED OPTIONAL ACCESSORIES
- Saw blade holders for circular saws with external Ø200–450, Ø400–650, and Ø600–850 mm.
- Centering rings for circular saws bore hole in different sizes.
- Reinforced saw holder device
- Mist extraction equipment.
- Equipment for oil operation.

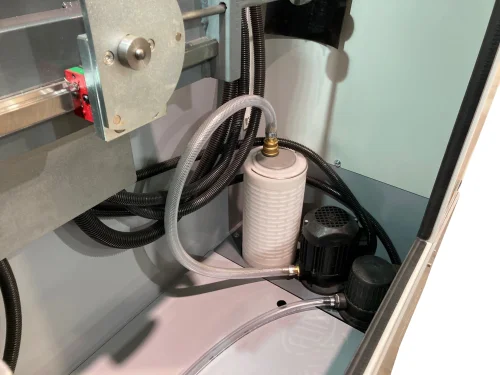

- Filtration system: ELITE FILTRAmaq UNO, SOLO, or PRO models. Filtration up to 2 µm. Recommended for improved sharpening quality.

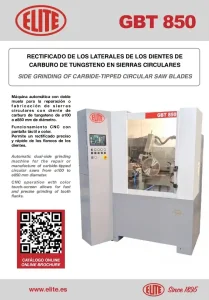

DOWNLOAD LEAFLET
VIEW USER MANUAL
COMPLETE SOLUTION FOR THE REPAIR OF CIRCULAR SAWS

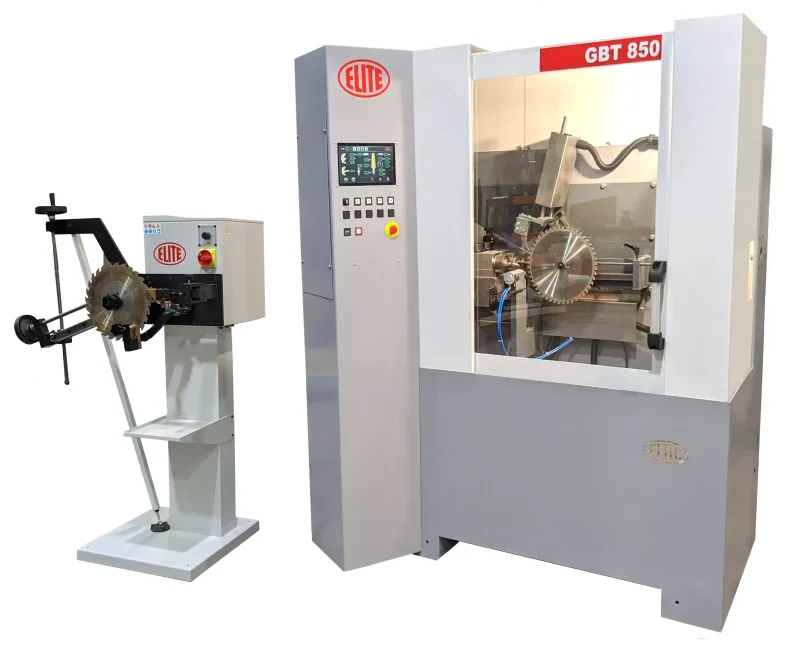

Together with the circular saws tungsten tips welding machine ELITE model SOLDAmaq 1200, you can carry out the complete repair of your circular saws in three steps:
- Desoldering of damaged teeth in the welder SOLDAmaq 1200
- Welding of the new carbide tips in the welder SOLDAmaq 1200
- Grinding of the sides on the GBT 850/GBT 851
And we already have the saw repaired!
